Quality Assessment

Quality Assessment is a feature that is integrated into the ValiAssistant. It analyzes the selected Requirements' texts based on a set of INCOSE rules and provides the user with a Quality Score and a Quality Comment on how to improve the Requirements if the score is low. This information is written into two specific columns which can be enabled on the Requirements tables called “Quality Assessment Comment“ and “Quality Assessment Score“. Information on the overall Quality of the Requirements will also be highlighted in the Insights Dashboards in the Requirements Module.

The Quality Assessment can be accessed from three different locations. Depending on the location from which it is accessed, the context of the object sent for assessment will vary.

Access through the ValiAssitant Button

While in a specific Specification or on “All requirements,” the user can select “Quality Assessment” by accessing the ValiAssitant in the upper right-hand corner, as shown in Figure General Quality Assessment.

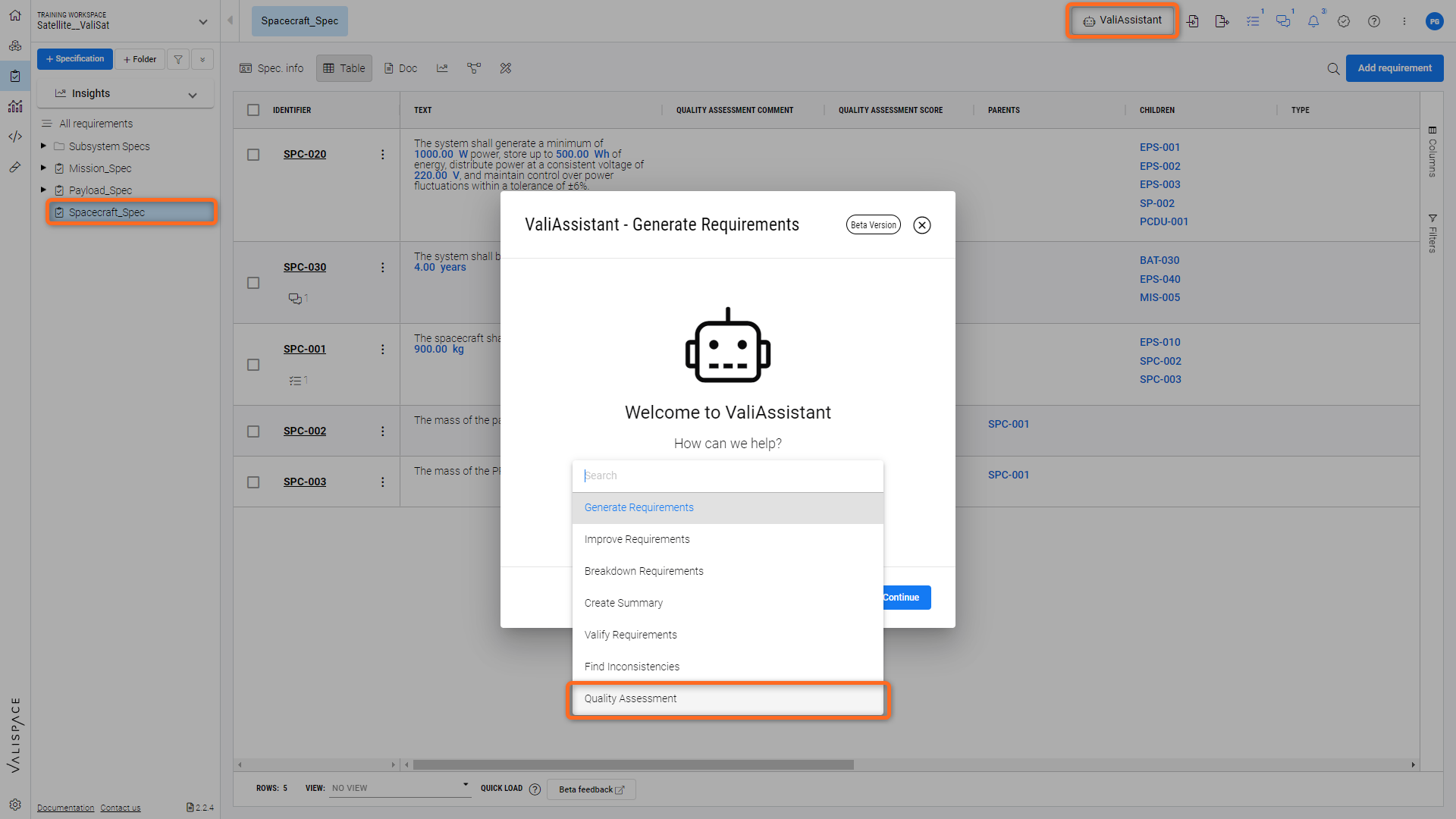

General Quality Assessment - Access through the ValiAssistant

When accessing the Quality Assessment through the ValiAssistant, all of the Requirements in the current Requirements Table will be analyzed.

Access through the Action Column

The Quality Assessment can be triggered directly from the Action columns on individual Requirements or a set of bulk-selected Requirements, as shown in Figure Individual Quality Assessment.

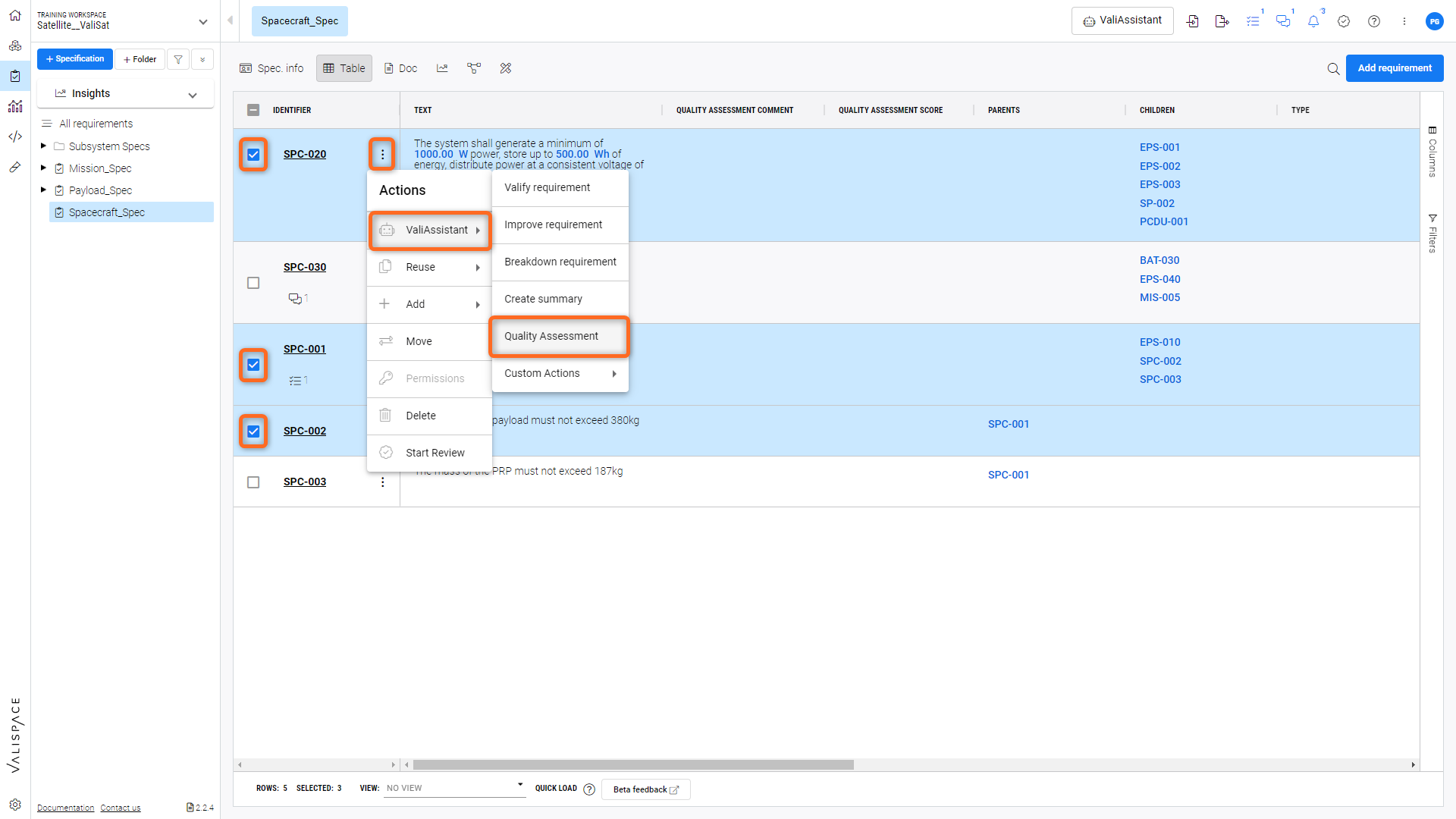

Individual Quality Assessment - When accessing the Quality assessment through the action column only the individual or the bulk selected Requirements will be considered.

When accessing the Quality Assessment through the action column, either the individual or the bulk of the selected Requirements in the current Requirements Table will be analyzed.

Access through the Insights

The Quality Assessment can also be triggered through the Insight Dashboards on the Specification level, as shown in Figure Quality Assessment Insights.

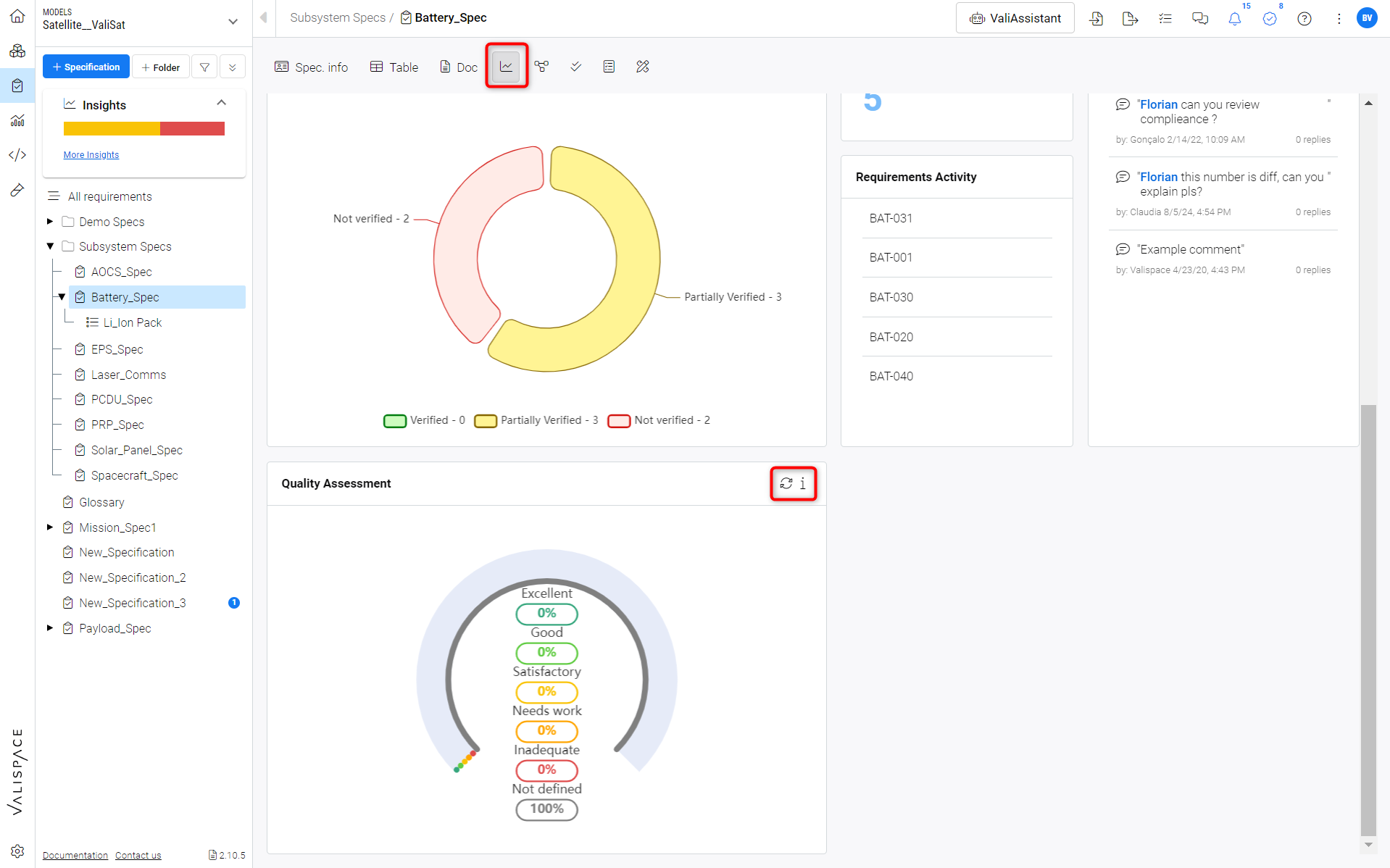

Quality Assessment Insights - Accessing the quality assessment within the insights section of the specification or “All Requirements”.

When accessing the Quality Assessment through the Insights, all of the Requirements in the currently selected Specification will be analyzed.

Quality Assessment Flow

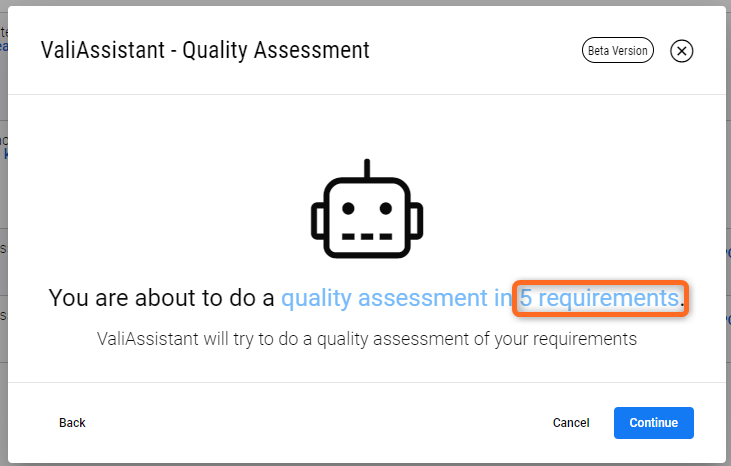

After triggering the Quality Assessment, Valispace will indicate how many Requirements will be analyzed.

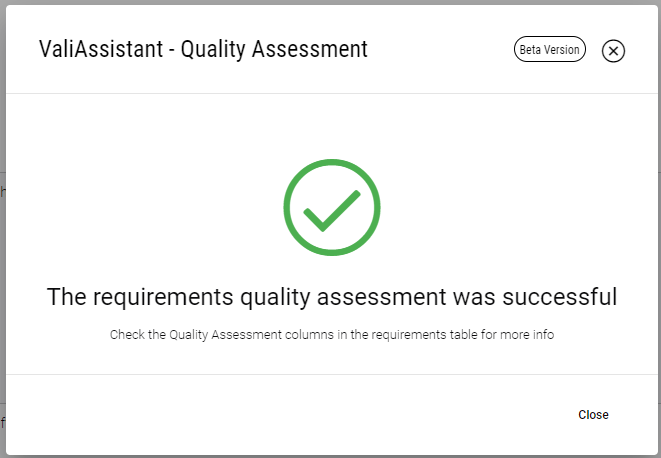

Then Valispace will inform you that the quality assessment was successful.


In the end, the “Quality Assessment Comment” and “Quality Assessment Score” will provide additional information about the quality of your requirement text, as shown in Fig Additional Quality Information.

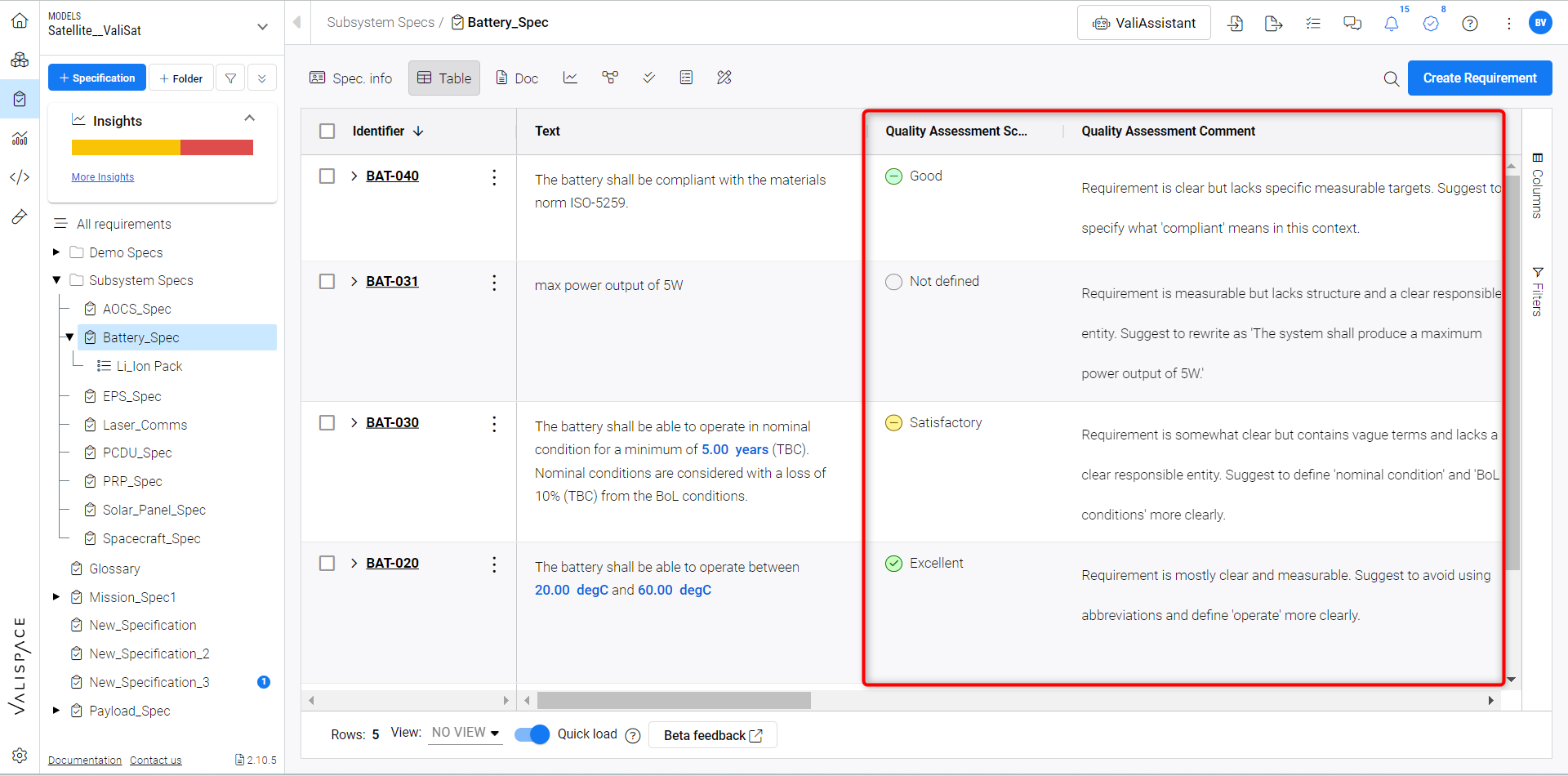

Additional Quality Information - The information is displayed in the two columns highlighted here.

Scoring Criteria

  • Score: 0-20 / 1 (Level 1 - Inadequate)

    • Criteria: The requirement text violates multiple INCOSE standards. It lacks structure, uses passive voice, contains vague terms, and has poor grammar and punctuation. No clear responsible entity or ambiguous or not actionable.

  • Score: 21-40 / 2 (Level 2 - Needs Improvement)

    • Criteria: The requirement follows some standards but has significant issues. It may be somewhat structured but still uses the passive voice, contains escape clauses, or lacks specific, measurable targets.

  • Score: 41-60 / 3 (Level 3 - Satisfactory)

    • Criteria: The requirement generally follows standards but has some minor issues. It may be primarily structured but includes minor grammatical errors or lacks specific units of measure.

  • Score: 61-80 / 4 (Level 4 - Good)

    • Criteria: The requirement adheres to most standards. Well-structured, active voice, and specific measurable targets, but may have one or two minor issues.

  • Score: 81-100 / 5 (Level 5 - Excellent)

    • Criteria: The requirement fully adheres to standards. It is clearly structured, active voiced, has specific measurable targets, no grammatical errors, and is unambiguous and actionable.

After a Quality Assessment, the overall quality score will be communicated to the Insight Dashboard and represented based on the score as “Low“ (score below 50), “Medium“ (score between 50 and 70) and “High“ (score above 70), as shown in Figure Insights Quality Score.

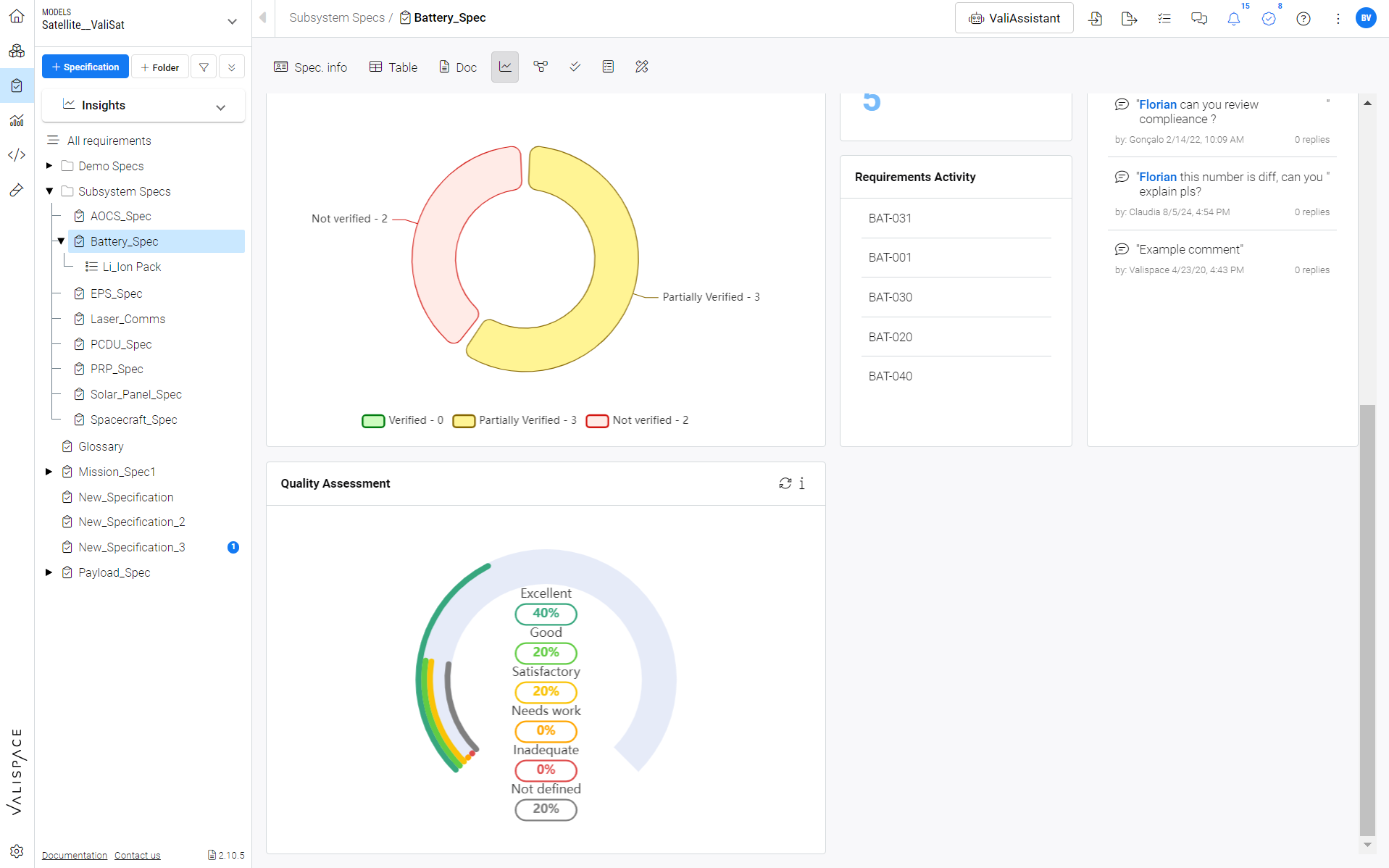

Insights Quality Score - Overall Quality scoreboard for the analyzed Requirements.

INCOSE Rules was taken into Consideration for Assessment

CODE
R1 - Use a structured, complete sentence: subject, verb, object.
R2 - Use the active voice in the main sentence structure of the need or requirement statement with the responsible entity clearly identified as the subject of the sentence.
R3 - Ensure the subject and verb of the need or requirement statement are appropriate to the entity to which the need or requirement refers.
R5 - Use definite article “the” rather than the indefinite article “a”.
R6 - Use appropriate units when stating quantities. All numbers should have units of measure explicitly stated.
R7 - Avoid the use of vague terms such as “some”, “any”, “allowable”, “several”, “many”, “a lot of”, “a few”, “almost always”, “very nearly”, “nearly”, “about”, “close to”, “almost”, and “approximate”.
R8 - Avoid escape clauses such as “so far as is possible”, “as little as possible”, “where possible”, “as much as possible”, “if it should prove necessary”, “if necessary”, “to the extent necessary”, “as appropriate”, “as required”, “to the extent practical”, and “if practicable”.
R9- Avoid open-ended clauses such as “including but not limited to”, “etc.” and “and so on”.
R10 - Avoid superfluous infinitives such as “be designed to”, “be able to”, “be capable of”.
R12, 13, 14 - Use correct grammar, spelling, punctuation.
R15 - Use a defined convention to express logical expressions such as “[X AND Y]”, “[X OR Y]”, [X XOR Y]”, “NOT[X OR Y]”.
R16 - Avoid the use of “not”
R17 - Avoid the use of the oblique ("/") symbol except in units, i.e. km/hr
R18 - Write a single sentence that contains a single thought conditioned and qualified by relevant sub-clauses.
R19 - Avoid combinators that join clauses, such as “and”, “or”, ”then”, ”unless”, ”but”, ”as well as”, ”but also”, ”however”, ”whether”, ”meanwhile”, ”whereas”, ”on the other hand”, or ”otherwise”.
R20 - Avoid phrases that indicate the purpose of the need or requirement.
R21 - Avoid parentheses and brackets containing subordinate text.
R22 - Enumerate sets explicitly instead of using a group noun to name the set.
R24 - Avoid the use of pronouns and indefinite pronouns.
R26 - Avoid using unachievable absolutes such as 100'%' reliability, 100'%' availability, all, every, always, never, etc.
R28 - Express the propositional nature of a condition explicitly for a single action instead of giving lists of actions for a specific condition.
R29 - Classify the needs and requirements according to the aspects of the problem or system it addresses.
R31 - When defining design inputs avoid stating a solution unless there is rationale for constraining the design. Focus on the problem “what” rather than the solution “how”.
R32 - Use “each” instead of “all”, “any" or “both” when universal quantification is intended.
R33 - Define quantities with a range of values appropriate to the entity to which they apply and to which the entity will be verified or validated against.
R34 - Provide specific measurable performance targets appropriate to the entity to which the need or requirement is stated and against which the entity will be verified to meet.
R35 - Define temporal dependencies explicitly instead of using indefinite temporal keywords such as “eventually”, “until”, “before”, “after”, “as”, “once”, “earliest”, “latest”, “instantaneous”, “simultaneous”, “at last”.
R38 - Avoid the use of abbreviations.
